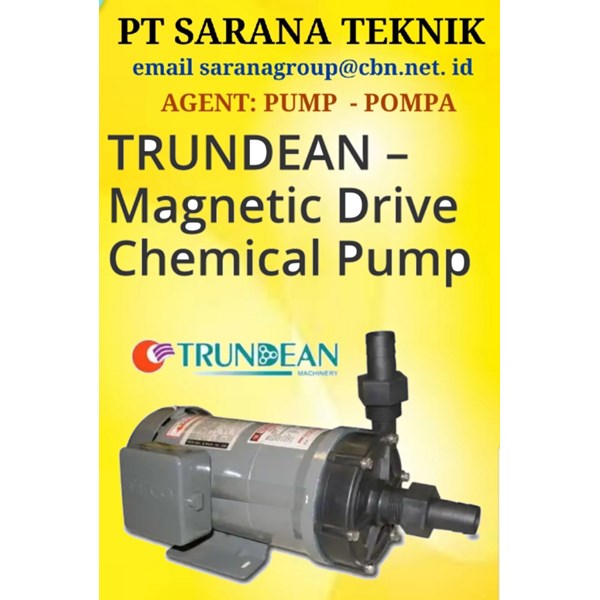

Spesifikasi TRUNDEAN MAGNETIC DRIVE CHEMICAL PUMP POMPA

Gear Pump

EMAIL : SARANAGROUP@CBN.NET.ID

FAX  021- 65305868

Description

Magnetic Drive Pump is made of anti-corrosion, thermoplastic GFR-PP or PVDF materials and easy to load and unload. Magnetic Drive Pumps can be applied to a wide variety of fields, such as sea-farming, PCB assembly process, chemical works and surface treatment of metals. The magnet-driven seal less pumps are easy for assembly and disassembly; no special tools needed to replace parts. Furthermore, the free seal feature makes the pump best for applications which not allowing any leakage. Trundean Machinery has over 25 years of experience in the industry, capable of providing high quality Magnetic Drive Pumps to customers worldwide.



Trundean Machinery is committed to maintain product quality, innovation, production standardization, and strict inspection system, in order to ensure that Trundean roots blower, Magnetic Drive Pump and Diffusers can meet customer's requirement. We offer premium quality products and efficient after-sales service. We are capable of making products based on customer’s special request. Custom-made order is very welcome.



Feature:



Superior combination of materials and a leak-free, seamless design.

Excellent corrosion resistant materials such as carbon and ceramics

Designed with an emphasis on improved durability.

Excellent corrosion resistant.

Featuring enhanced reliability and safety.

The series can be arranged with NEMA or IEC standard motor.

Easy maintenance disassembly and assembly

Specification Table



Type- 50Hz / 60Hz



Type Bore Thread Max Capacity Max. Head S. G Molor Pole

Inlet Outlet Inlet Outlet Union L/min m Phase Output

TMD-06 20mm 20mm PF 3/4" 16mm 37/40 4/5.8 1.1 1 or 3 65W 2

TMD-09 26mm 26mm PF 1" 20mm 72/95 7/10 1.2 1 or 3 90W 2

TMD-18 26mm 26mm PF 1" 20mm 72/95 7/10 1.1 1 or 3 180W 2

TMD-25 26mm 26mm PF 1" 20mm 118/119 12/12 1.2 1 or 3 250W 2
